Discover the Power of the
Crary BC18 Fan
For High Efficiency Vacuum and Pressure Applications
NEW!
The BC18 was designed with efficiency and simplicity in mind. The BC18 underwent multiple rounds of rapid prototyping to test and ensure optimized fan efficiencies and capabilities. The backwards curve rotor design with domed inlet and optimized internal housing shape ensures high efficiency air for your application. The cast aluminum housing and steel backplate provide a durable simple to service fan.
Whether you need vacuum to support your planter meters, high-pressure air to deliver fertilizer and seed, or air to use for a wide variety of applications, the BC18 can provide a high efficiency solution across a wide operating range. Available with inlet and outlet options to match your needs, from vacuum inlets to inlet and outlet screens.
Key Features and Options | Crary BC18 Fan
Powerful Airflow & Design
- High efficiency vacuum and pressure
- Efficient delivery of pressurized air across a wide operating range
- Capable of over 60% efficiency in vacuum applications like planter meters
- Domed inlet to optimize airflow through rotor
- Durable aluminum and steel construction
Customizable to Your Needs

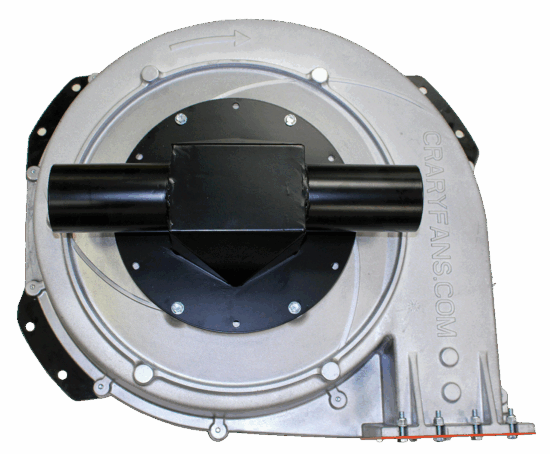

- Available vacuum inlets to match your needs
- Available inlet and outlet screens to match your needs
- Multiple motor sizes available
- Configurations for common motor mount patterns and orientations
- Optional sensor ready configuration with backplate sensor location
- Bee safe compatible with outlet orientations and duct ready outlet

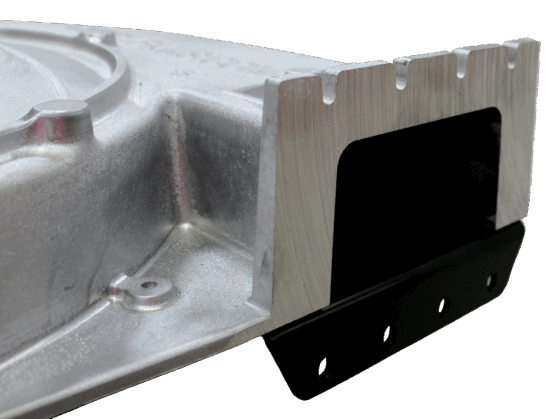

- Outlet duct adapter available
Wide Range of Applications
- Planter vacuum meters
- Fertilizer
- Seed carts
- Air drills
- Fresh produce equipment
- Variety of positive pressure air applications
- Variety of vacuum applications
Performance Curves of Crary BC18 Fan
BC18 Vacuum Imperial 1500-5500 RPM
BC18 Vacuum Metric 1500-5500 RPM
BC18 Pressure Imperial 1500-5500 RPM
BC18 Pressure Metric 1500-5500 RPM
Compare the Crary BC18 Fan
Crary BC18 Fan
Backwards curve rotor design with powerful and efficient vacuum and pressure applications.
Vs. FC6 Fan
- Higher efficiency
- Covers vacuum meters well
- Wider operating CFM range
Vs. FC8 Fan
- Closest in size to FC8 Fan
Planter Vacuum Meters
Fertilizers or Air Drills
Fresh Produce Equipment
5,500 max RPM
Our flagship fan offering superior airflow and energy efficiency for industrial applications.
Vs. BC18 Fan
- More Compact Size
